The OPTEK product range includes a series of digital microscope cameras & imaging systems suitable for applications from research to education.

The OPT-MULTI-2-LCD Digital Camera System incorporates the new series of multi-output cameras with a HD display to produce a versatile platform which can be used with or without a PC.

These systems are particularly useful for QA applications where simplicity of operation is desired but also allowing the ability to document inspections with the capability to measure & analyze processes.

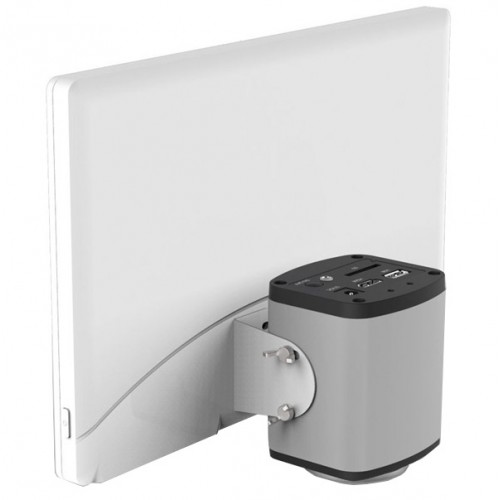

This unit incorporates an 11" HD LCD display which provides sharp,high fidelity colour,high resolution images.

Using an industry standard C-mount fitting,the DMC-MULTI-2-LCD can be attached to most microscope systems

Features

1. Camera setup menu with on screen display & mouse control from USB port

2. 11” HD LCD Screen, high definition and high quality color reproduction.

3. 5.0MP still image capture with 1080P Video Recording.

4. Capture & save images / video to SD card.

5. Capture & save images to PC

6. C-mount connection to microscope

Specifications

CAMERA

Camera type            Multi-output HDMI Camera

Image Sensor          CMOS

Sensor Size              1/2.5"

Video Resolution      1920 × 1080

Image Resolution    2592 × 1944

Frame Rate               1920 × 1080 @ 15fps via  USB2.0    ; 1920 × 1080 @ 15fps via  HDMI

Storage                     Removable SD Card (not included)

Video Record            1080p @ 15fps to SD Card ; 1080p @ 15fps to PC

Scan Mode               Progressive

Shutter                      Electronic Rolling Shutter

A/D conversion       8 bit

Color Depth             24bit

Sensitivity                510mV

Dynamic Range      60dB

S/N ratio                   40.5dB

Exposure time        0.001 sec ~ 10.0 sec

Exposure                 Auto/Manual

White balance        Auto

Menu Settings        Gain,Gamma,Saturation,Contrast

OS software            Cloud 1.0 version

PC software             ISCapture

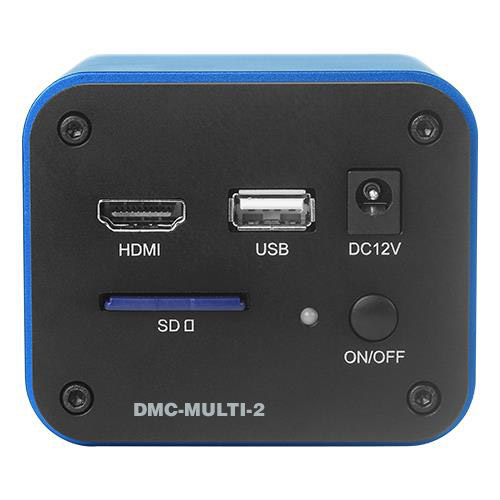

Outputs                     USB2.0 ; HDMI

Compatibility           Windows XP/Vista/Win 7/Win 8(32 and 64-bit ), MAC OSX

Adapter                    C- Mount

Power Supply          DC 12V /2A

Op.Temp.                 0-60°C    (humidity 50%-80%)

SCREEN:

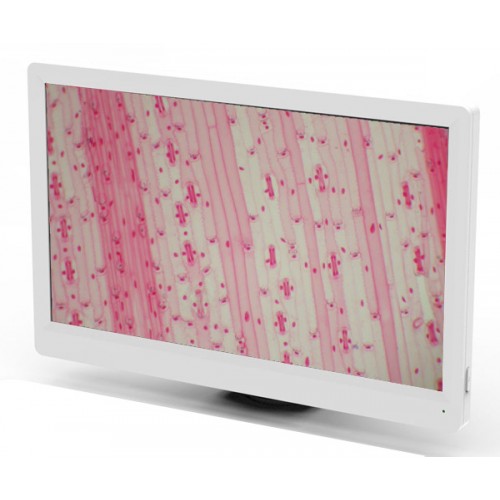

Screen                     HD 11 inch 1920 x 1080 pixeld with aspect Ratio 16:9

Brightness               300cd/m2

Contrast Ratio        800:1(static)

Input                         HDMI

Power Supply          DC 12V /2A

Dimensions              280 ×180 ×15mm
