This
Stereozoom Microscope is a precision engineered instrument which offers
professional-level performance frequently found in higher priced
alternatives.
A new improved optical design delivers higher levels of image quality to that of the SZM1B base models and therefore specifically positions this model for use in appllications demanding higher performance but without breaking the bank.
The
optical system features a wide range zoom magnification changer wich
facilitates wide fields of view and delivers high resolution,high
contrast images at a very respectible 100mm (standard) working distance
The exterior design is clean & modern with considerable thought put into maximizing the ease of use and ergonomics of the unit.With minimal use of plastics in the key mechanical areas,ensures years of faithful & reliable service.
This series of microscopes are used by professionals all over the world working in:
Clinical studies,Zoology,Entomology,Gemmology,Geology,Materials Science,Electronic assembly & inspection
as well as Education,Research & Industrial applications.
Features:
■ Precision,surface coated optical components for superior performance
.
■ Zoom objective lens 0.67X~4.5X (High ratio 6.7:1),
Standard magnification 6.7X~45X. with 10xWF eyepieces
Optional lenses extend the magnification range between 2X to 225X.
■ Standard working distance: 100mm
Optional auxiliary lenses offer working distances between 26mm and 287mm
■ 45°inclined viewing tube for comfortable operation
■ Paired focusable eyepieces enabling optimal adjustment of the zoom system for the user
■ Graduated,bilateral,conveniently placed zoom controls
■ Large range of optional stands for customization for application
■ Lighting options include built-in lighting or external lighting
■ Binocular (standard),Trinocular & Digital version available
Specifications
|
Eyepiece |
STANDARD Wide field high eyepiont focusable paired eyepieces WF10X/22mm |
|
Optional WF15x Wide field high eyepiont eyepieces | |
|
Optional WF20x Wide field high eyepiont eyepieces | |
|
Viewing Head |
SZM4 Binocular head, 45° inclined, 360°rotatable, zoom objective 0.67X-4.5X, working distance 100mm. inter-pupillary range 55~76mm, fixed eyepiece tube |
|
SZM4TR Trinocular head, 45° inclined, 360°rotatable, zoom objective 0.67X-4.5X, working distance 100mm. inter-pupillary range 55~76mm, fixed eyepiece tube | |
|
SZM4SP Binocular head, 60° inclined, 360°rotatable, zoom objective 0.67X-4.5X, working distance 100mm. inter-pupillary range 55~76mm,fixed eyepiece tube | |
|
Optional Auxiliary Lens |
0.3X Working distance 287mm |
|
0.4X Working distance 217mm | |
|
0.5X Working distance 177mm | |
|
0.75X Working distance 117mm | |
|
1.5X Working distance 47mm | |
|
2X Working distance 26mm | |
|
Focus |
FB1,focusing block with tension adjustment,range 50mm |
|
FB2,focusing block with tension adj,industry applications | |
|
FB3,focusing block with tension adj,industry applications | |
|
Stand |
P1 plain stand with pillar |
|
P2 large base,plain stand with pillar | |
|
P3 plain stand with fixed pillar,large focusing range | |
|
TL stand with top & bottom lighting,with pillar | |
|
TL2 stand with top & bottom lighting,fixed pillar,large focus range | |
|
C stand.Long reach boom stand | |
|
C2 stand.Long reach boom stand (heavy duty) | |
|
LBP Auxiliary transmitted light base for use with P1 stand | |
|
Lighting options |
Ring light LED light ; Fibreoptic Illuminator |
|
DSLR Camera adapters |
For use withSZM4TR ; For Nikon,Canon,Olympus,etc |
|
Digital Cameras |
Large range of CMOS & CCD USB2.0 & USB3.0 cameras |

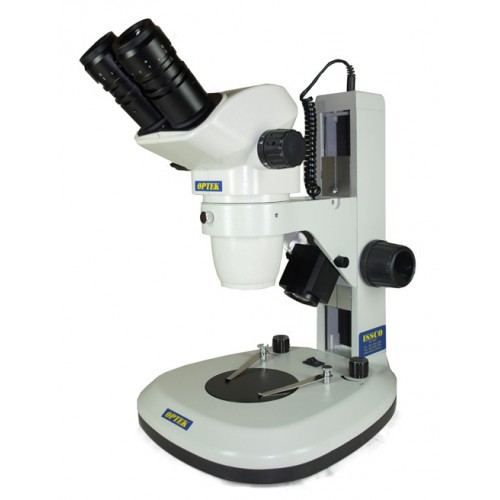

OPTEK SZM4TL2
- Product Code: SZM4TL2
- Availability: In Stock
-
$0.00
- Ex Tax: $0.00
