The SZM1 series forms the basis of the OPTEK range of economical Pro Stereozoom Microscopes for industry & education.
These models provide users with good optical & mechanical performance at an exceptionally afordable price.
The optical system features an industry standard 7x to 45x zoom range (1:6.4 zoom ratio) with a 90mm working distance.Suitable for most industrial & educational applications.
The design is clean & sturdy.
Minimal use of plastics in the key mechanical areas,ensures years of faithful & reliable service.
This series of microscopes are used by professionals all over the world working in:
Clinical studies,Zoology,Entomology,Gemmology,Geology,Materials Science,Electronic assembly & inspection
as well as Education & other Industrial applications.
Features:
■ Precision,surface coated optical components
.
■ Zoom objective lens 0.7X~4.5X (High ratio 6.4:1),
Standard magnification 7X~45X. with 10xWF eyepieces
Optional lenses extend the magnification range between 2X to 225X.
■ Standard working distance: 90mm
Optional auxiliary lenses offer working distances between 26mm and 287mm
■ 45°inclined viewing tube for comfortable operation
■ Paired 10xWF eyepieces (standard)
■ Graduated,bilateral,conveniently placed zoom controls
■ Large range of optional stands for customization for application
■ Lighting options include built-in lighting or external lighting
■ Binocular (standard),Trinocular & Digital version available
Specifications
|
Eyepiece |
STANDARD Wide field high eyepiont focusable paired eyepieces WF10X/20mm |
|
Optional WF15x Wide field high eyepiont eyepieces | |
|
Optional WF20x Wide field high eyepiont eyepieces | |
|
Viewing Head |
SMZ1B Binocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 90mm. inter-pupillary range 55~76mm, fixed eyepiece tube |
|
SMZ1BTR Trinocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 90mm. inter-pupillary range 55~76mm, fixed eyepiece tube | |
|
| |
|
Optional Auxiliary Lens |
0.3X Working distance 277mm |
|
0.4X Working distance 207mm | |
|
0.5X Working distance 167mm | |
|
0.75X Working distance 107mm | |
|
1.5X Working distance 45mm | |
|
2X Working distance 22mm | |
|
Focus |
FB1,focusing block with tension adjustment,range 50mm |
|
FB2,focusing block with tension adj,industry applications | |
|
FB3,focusing block with tension adj,industry applications | |
|
Stand |
P1 plain stand with pillar |
|
P2 large base,plain stand with pillar | |
|
P3 plain stand with fixed pillar,large focusing range | |
|
TL stand with top & bottom lighting,with pillar | |
|
TL2 stand with top & bottom lighting,fixed pillar,large focus range | |
|
C stand.Long reach boom stand | |
|
C2 stand.Long reach boom stand (heavy duty) | |
|
LBP Auxiliary transmitted light base for use with P1 stand | |
|
Lighting options |
Ring light LED light ; Fibreoptic Illuminator |
|
DSLR Camera adapters |
For use withSMZ1BTR ; For Nikon,Canon,Olympus,etc |
|
Digital Cameras |
Large range of CMOS & CCD USB2.0 & USB3.0 cameras |

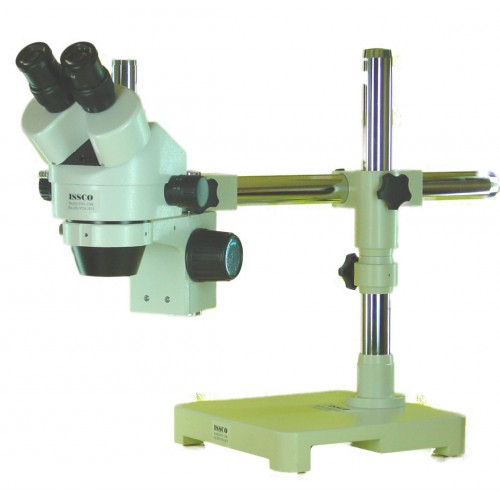

OPTEK SMZ1BC
- Product Code: SZM4C
- Availability: In Stock
-
