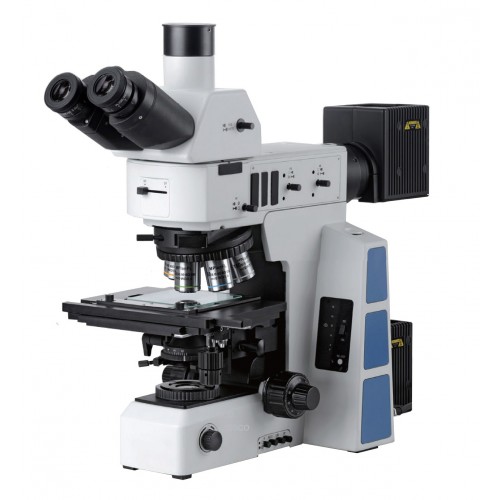

The OPTEK OPT-MET UL series of metallurgical microscopes represents a new age in microscopy.

No longer are high end & sophisticated systems limited to the major manufacturers.

The OPT-MET UL is a versatile system which incorporates high quality imaging performance with a

large,stable microscope frame incorporating precision mechanics.

This system is typically used in industrial testing & metallurgical analysis.

FEATURES:

SPECIFICATIONS:

Model	OPT-MET UL1		OPT-MET UL2
Imaging technique	Bright field/Dark field/ Polarizing/DIC		Bright field/Dark field/Polarizing/ DIC / Transmitted light
Optical system	Infinity color corrected optical system
Eyepiece	High Eyepoint 10xWF eyepieces (Paired)
Objectives	EPI-BD LWD metallurgical objectives 5x,10x,20x,50x,100x Semi Apochromatic
Viewing head	Erect image Seidentopf Binocular Viewing tube with Phototube
Nosepiece	Reversed angle sextuple nosepiece
	Reversed angle septuple nosepiece (optional)
Stage	Built-in mechanical stage withmovement range of 102 x 105mm		Built-in mechanical stage withmovement range of 102x 105mm Glass plate for transmitted light applications
Body	Large,stable frame incorporating: Coaxial coarse and fine focus Coarse adjustment range 33 mm Fine adjustment:with 0.002mmgraduations Safety stop on coarse focus. Built-in variable intensity power supply		Large,stable frame incorporating: Coaxial coarse and fine focus Coarse adjustment range 33 mm Fine adjustment:with 0.002mmgraduations Safety stop on coarse focus. Built-in variable intensity power supply Transmitted lighting
Reflective light illumination System	With Field and Aperture iris diaphragms (centerable)Filter recepticle ; Polarizing light selector ; Darkfield / Brightfield selector 12V 100W halogen light (adjustable intensity)
Transmitted light illumination system	NA	High-power 5W LED, Adjustable intensity Condenser with iris diaphragm NA 0.5
