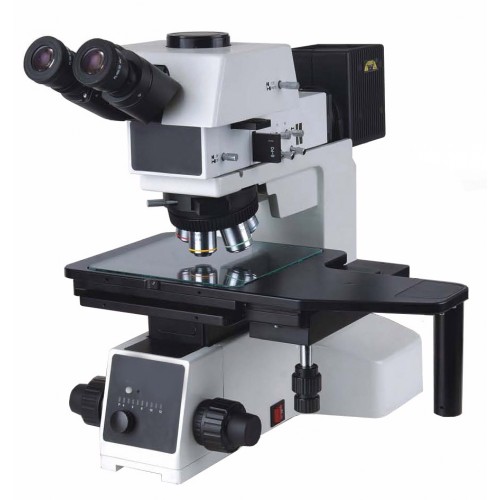

  • OPTEK OPT-MET 1 / 1B Upright Metallurgical Microscope

The OPTEK OPT-MET 1 series of metallurgical microscopes represents a new age in microscopy.

No longer are high end & sophisticated systems limited to the major manufacturers.



THe OPT-MET 1 is a versatile system which incorporates high quality imaging performance with a

large,stable microscope frame incorporating precision mechanics.

This system is typically used in industrial testing & metallurgical analysis.



FEATURES:

  • Ergonomic design allowing continuous,fatigue free use
  • Modular design
  • Multi imaging techniques (Brightfield,Darkfield,polarizing, & DIC)
  • Long Working Distance infinity corrected objectives
  • Large mechanical stage
  • Solid,stable frame




SPECIFICATIONS:



Model

OPT-MET 1

OPT-MET 1B


Imaging technique

Bright field/Dark field/

Polarizing/DIC

Bright field/Dark field/Polarizing/

DIC / Transmitted light

Optical system

Infinity color corrected optical system

Eyepiece

High Eyepoint 10xWF eyepieces (Paired)

Objectives

EPI-BD LWD metallurgical objectives 5x,10x,20x,50x (optional 100x)

Viewing head

Erect image Seidentopf Binocular Viewing tube with Phototube

Nosepiece

Reversed angle quintuple nosepiece

Reversed angle sextuple nosepiece (optional)

Stage

Built-in mechanical stage withmovement range of

158x 158mm with quick release for faster scanning

Built-in mechanical stage withmovement range of

158x 158mm with quick release for faster scanning.

100 x 100mm glass plate for

transmitted light applications

Body

Large,stable frame

incorporating:

Coaxial coarse and fine focus Coarse adjustment range

33 mm

Fine adjustment:with 0.002mmgraduations

Safety stop on coarse focus.

Built-in variable intensity

power supply

Large,stable frame

incorporating:

Coaxial coarse and fine focus Coarse adjustment range

33 mm

Fine adjustment:with 0.002mmgraduations

Safety stop on coarse focus.

Built-in variable intensity

power supply

Transmitted lighting

Reflective light

illumination System

With Field and Aperture iris diaphragms (centerable)Filter recepticle

; Polarizing light selector ; Darkfield / Brightfield selector

12V 100W halogen light (adjustable intensity)

Transmitted light

illumination system

NA

High-power 5W LED,

Adjustable intensity

Condenser with iris diaphragm

NA 0.5
