With improving technology & know-how,OPTEK is expanding their range of precision optical instruments into the higher performance categories,formerly reserved for a select few manufacturers.

We are please to anounce a further addition to OPTEK's comprehensive range of professional microscopes.

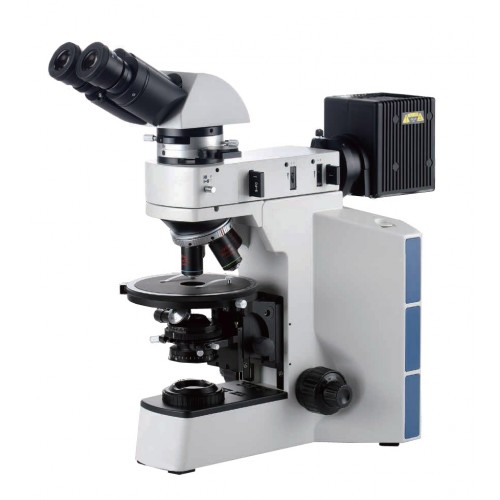

The newly designed POL-40IT  takes the instrument range into new frontiers of  image quality & performance.

This system aggregates precision optics,precision machanics into an impressive frame featuring stability,ergonomics & easy operation.

Features

■  Y-Frame construction for ultimate stability

■  Modular design facilitating ease of customization / expansion

■  Precision optics,precision mechanics

■  Infinity Corrected Optical System for optimal performance

Specifications

Optical system        Infinity color corrected optical system

Viewing head          30° inclined Seidentopf binocular head, interpupillary distance 55~75mm, Diopter ±5 adjustable

                                   30° inclined Seidentopf trinocular head, interpupillary distance 55~75mm, Diopter ±5 adjustable,

                                   splitting ratio R:T=100:0 or 50:50

                                    30°~60° tilting binocular head, interpupillary distance 55~75mm, Diopter ±5 adjustable

Eyepiece                    High eye-point wide field plan eyepiece PL10X22mm (x1)

                                    High eye-point wide field plan eyepiece PL10X22mm, with reticle (x1)

                                    High eye-point wide field plan eyepiece PL15X16mm (optional)

Objective                    LWD Plan strain-free objectives 5X/10X/20X/50X

                                    Plan Strain-free objective 4X/10X/20X/40X/60X

Intermediate tube      With removable Bertrand lens (centerable,focusable),

                                      With removable Analyzer (360 degree rotatable,graduated

                                      Compensators: Wavelength ; Quarter wavelength

                                      Quartz Wedge (optional)

Nosepiece                  Reverse abgle quadruple nosepiece with centerable objective mounts

                                      Revolving centerable quintuple nosepiece (optional)

Illumination                Transmitted light (12V 50W),Koehler (POL-40)

                                     Transmitted (12V 50W) & Reflected light (12V 50W),Koehler (POL-40IT)

                                      Reflected light (12V 50W) ,Koehler(POL-40I)

Focusing                    Precision with coarse & fine focus (2um division)

Stage                         Rotating (360 dgree,1 degree increment,ceramic coated) with scales & vernier

                                    160mm diameter,ball bearing,with stage insert

Condenser                Achromatic condenser (N.A. 1.2),

                                    with 360° rotatable polarizer

Power                        100V-240V_AC50/60Hz,

Filters                        Yellow/neutral/IF550/LBD filter for transmitted light

Miscellaneous         Stage micrometer 1mm/100div.

                                    Duscover

                                    Power cord

Optional:                    Digital camera adapters

                                     Digital cameras

                                     Digital imaging  tablet

                                     Mechanical stage, moving range: 30mm*40mm
